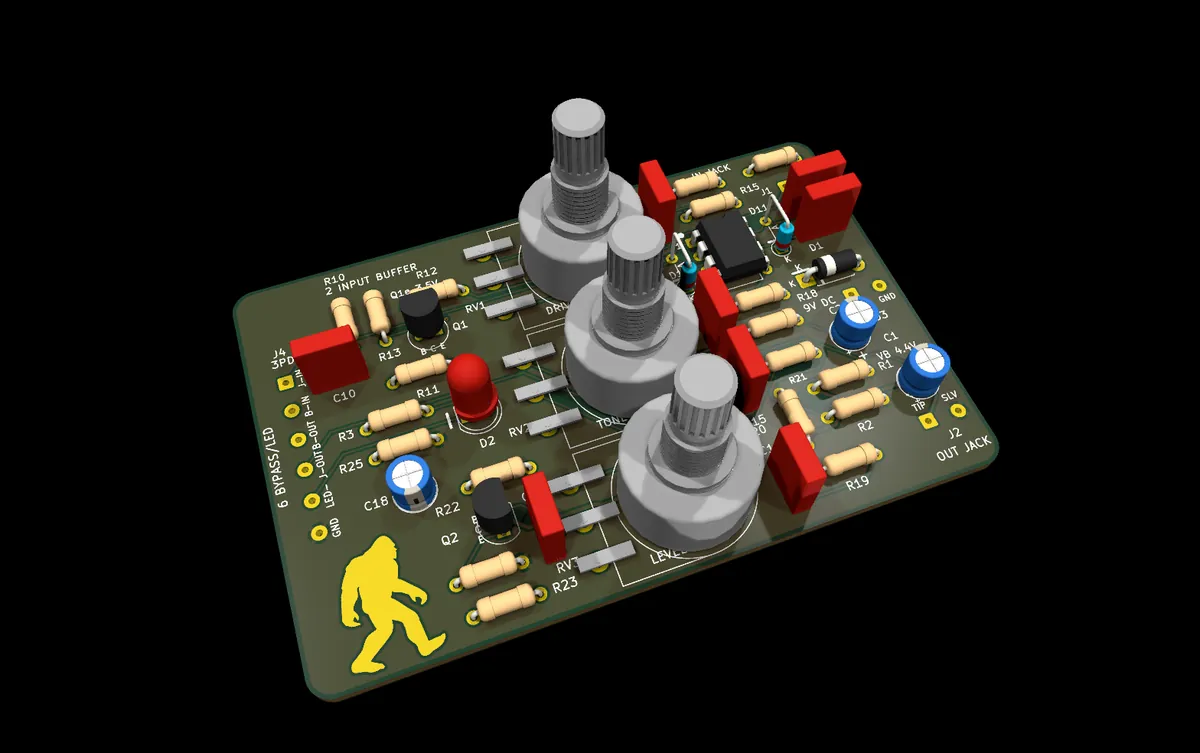

RenderTRAIL OD, an overdrive pedal kit.
Soft, diode-clipped drive you build yourself.
Boards

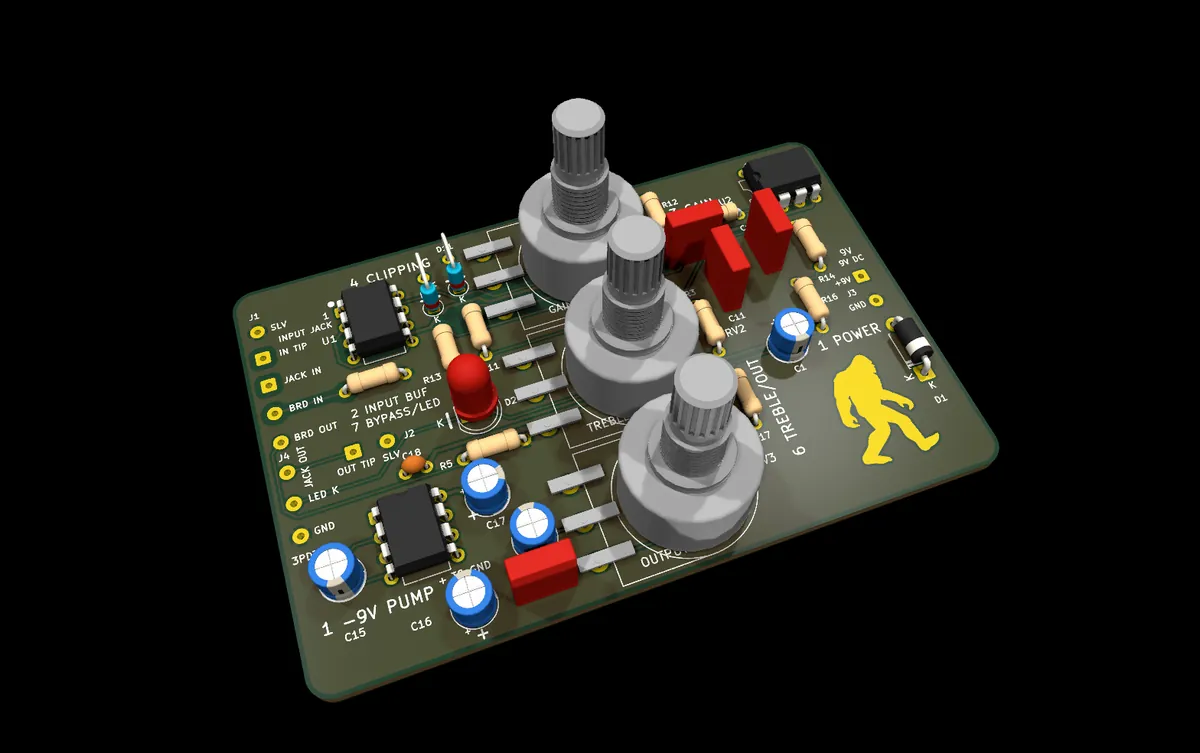

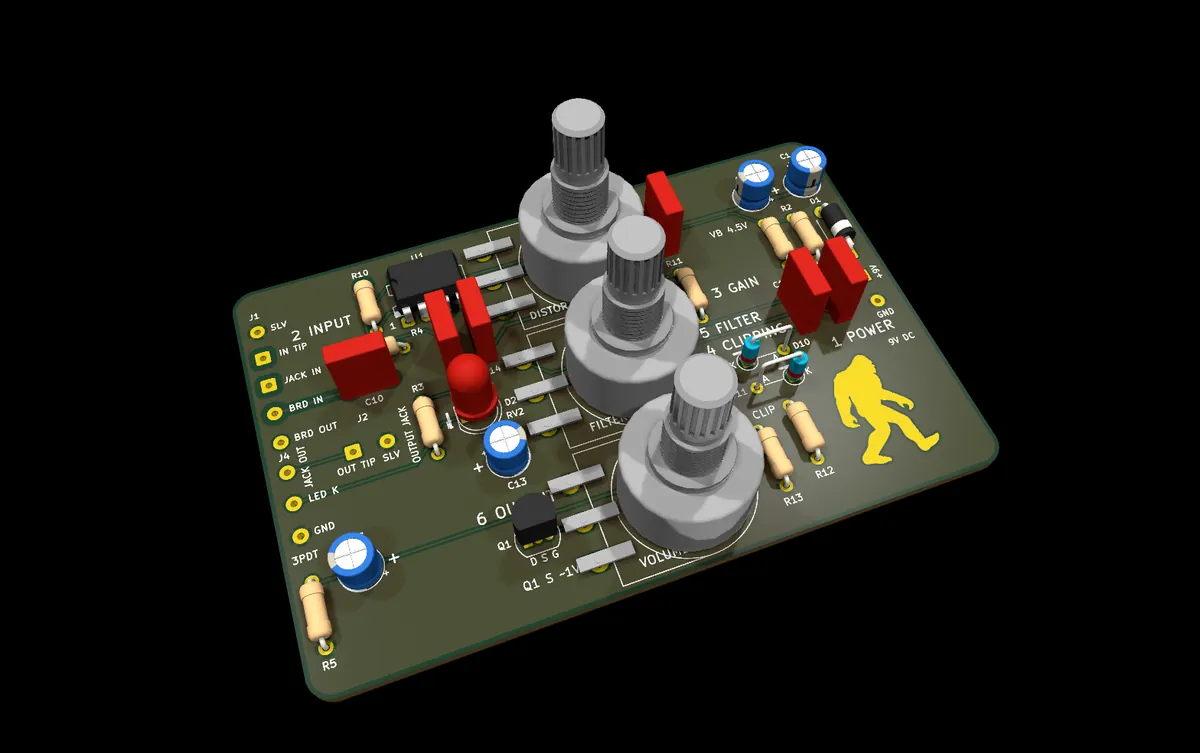

Twelve boards, zero design-rule errors.
Every board we have designed, checked by machine.
MeasuredWhat it does
A board that passes has no rule violations and nothing left unconnected, so what we send to the factory is what we meant to send.
Who it’s for
Anyone who wants a board that works without paying for a bad first batch.
Why we built it
Every board is designed in code, so each one is checked the same way, every time.
What we’re proud of
All 12 pass, with 0 design-rule errors and 0 unconnected items.
Try it
The live piece
How a board gets made
Text version: Spec to netlist to placement to route to pour
A board specification in Python becomes a netlist, a placement and a routed board. A set of checks then runs against it. Any failure sends the board back to placement.
- board spec (Python) leads to netlist
- proven analog blocks leads to netlist
- netlist leads to placement + keepouts
- placement + keepouts leads to route
- route leads to pour — after routing, never before
- pour — after routing, never before leads to checks (group)
- checks (group) leads to placement + keepouts (any fails)
- checks (group) leads to fab package (all pass)
Technologies used
What it’s built with.
- KiCadOpen-source circuit board design software. We design every board in code, check it in KiCad and send it to the factory.
- PythonOur board layouts, and the checks that run on them, are written in Python.
- MermaidDiagrams and charts described in text. We draw ours in 3D so you can turn them; the live pieces on these pages are built this way.
- WebGLHow a web page draws 3D on the graphics card. Our charts and diagrams use it, each with a text version.
- three.jsThe 3D library our charts and diagrams are drawn with.
